Aluminium Machinery Loading Ramps
![Industrial ramps](https://static.wixstatic.com/media/3d0e2b_0ab84e2860f145cb81294ab1a7578975~mv2.jpg/v1/fill/w_610,h_359,al_c,q_80,enc_auto/3d0e2b_0ab84e2860f145cb81294ab1a7578975~mv2.jpg)

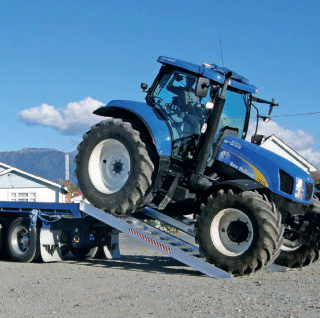

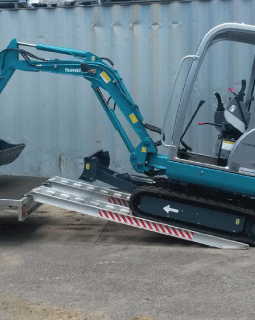

Endraulic stock a full range of industrial ramps made in New Zealand from top quality high tensile alloys. Ramps are safe, fast and practical, improving efficiency, increasing versatility and offering superior traction for safety and confidence. Selecting ramps for your application depends on the total weight of your machine, the track or tyre width, the height of your truck/reailer deck from the ground and an acceptable gradient for your machine to negotiate. We're here to help, so give us a call.
MODEL | CAPACITY [Per Pair] | WEIGHT [Per Ramp] | LENGTH [mm] | A | B | C | D |
L100/270 | 1900 | 20 | 2700 | 380 | 300 | 100 | 30 |
125/330 | 3000 | 32 | 3300 | 490 | 400 | 125 | 40 |
150/330 | 4500 | 43 | 3300 | 550 | 450 | 150 | 45 |
150/360 | 4500 | 47 | 3600 | 550 | 450 | 150 | 45 |
175/360 | 6000 | 58 | 3600 | 650 | 530 | 175 | 60 |
200/360 | 7500 | 68 | 3600 | 730 | 600 | 200 | 60 |
![Ramp diagram](https://static.wixstatic.com/media/3d0e2b_eb425b50d4ca4365ba3873805136a759~mv2.gif)
For more information give us a call 0800 468 782
